Liding One-Stop Containerized Seawater Desalination System for Islands

Short Description:

Liding’s containerized seawater desalination equipment is a one-stop solution for seawater resource utilization, specifically designed for islands, coastal communities, offshore platforms, and emergency disaster relief scenarios. The equipment utilizes reverse osmosis (RO) membrane technology to effectively remove salt and impurities from seawater, producing freshwater that meets discharge standards, thus addressing the freshwater shortage problem in coastal areas at its source.The entire system features a modular integrated design, eliminating the need for complex civil engineering construction and enabling rapid on-site deployment, significantly shortening project cycles. The equipment is equipped with an intelligent remote monitoring system, allowing for real-time monitoring of operational status and remote maintenance, greatly reducing manual management costs.Liding’s containerized seawater desalination equipment can flexibly adapt to different water usage scales, providing a sustainable freshwater guarantee for coastal and offshore scenarios worldwide with its core advantages of high reliability, low energy consumption, and ease of maintenance.

Send email to us

Product Detail

Equipment Features

1.Long service life: The box is made of Q235 carbon steel, spraying corrosion coating, environmental corrosion resistance, life of more than 30 years.
2.High efficiency and energy saving: The core film group is lined with reinforced hollow fiber film, which has strong acid and alkali tolerance, high pollution resistance, good regeneration effect, and the erosion and energy consumption of aeration is more flat than the traditional Plate film energy saving about 40%.
3.Highly integrated: The membrane pool is separated from the aerobic tank, with the function of offline cleaning pool, and the equipment is integrated to save land space.
4.Short construction period: Civil construction only hardening the ground, the construction is simple, the period is short-ened by more than 2/3.
5.Intelligent control: PLC automatic operation, simple operation and maintenance, taking into account the offline, online cleaning control.
6.Safety disinfection: Water using UV disinfection, stronger penetration, can kill 99.9% bacteria, no residual chlorine, no secondary pollution.
7.Flexibility selection: According to different water quality, water quantity requirements, process design, selection is more accurate.

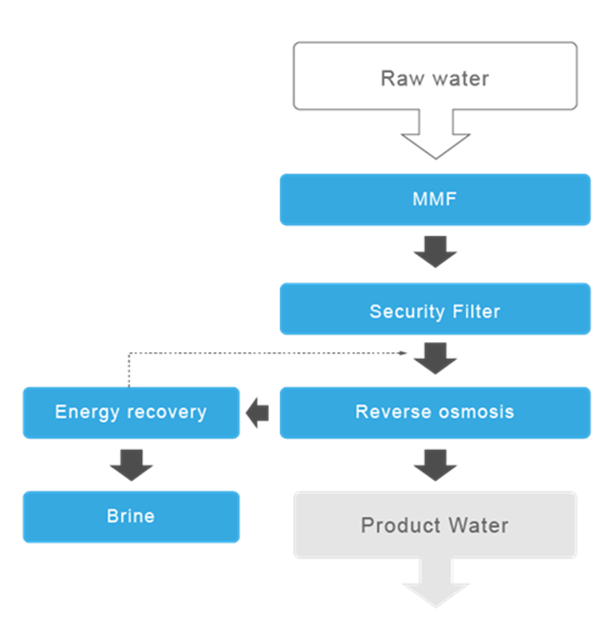

Flow Chart Of Process

Equipment Parameters

Processing capacity (m³/d)	100	150	200	250	300
Weight (t)	10	11	12	13	14
Power (kW)	12	17	22	28	33
Daily Power consumption(kW/h)	280	400	520	665	780

Note: The above data is for reference only. The parameters and selection are subject to mutual confirmation and can be combined for use. Other non-standard tonnage can be customized.

Application Scenarios

Rural sewage treatment projects, small town sewage treatment plants, urban and river sewage treatment, medical wastewater, hotels, service areas, resorts and other sewage treatment projects.
